Professional Fire Fighting Equipment Thermal Imagers UTi100 Series

Name: Professional Fire Fighting Equipment Thermal Imagers UTi100 Series
Brand: TOPSKY
Price: 1 USD

Brand Name : TOPSKY

Model Number : UTi100

Place of Origin : China

MOQ : 1 Set

Supply Ability : 300 Sets/Month

Packaging Details : Export standard

Name : Fire Fighting Equipment/ Good quality factory price Thermal Imagers UTi100

Sensor Type : Uncooled Focal Plane Arrays

Resolution : 100*80 pixels

Field of View /Minimum Focus Distance : 12°×9.4°/0.1m

Spatial Resolution(IFOV) : 2.2mrad

Image Mode : Infrared

Focus : Manual

Infrared Spectral Bandwidth : 8~14um

Contact Now

Fire Fighting Equipment/ Good quality factory price Thermal Imagers UTi100

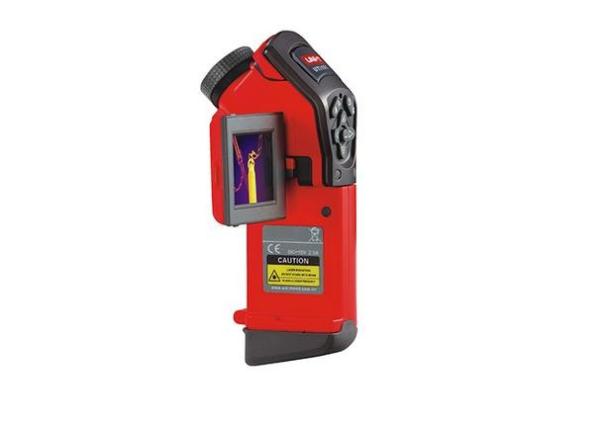

UTi100 Series IR Thermal Imagers are designed with infrared detector 100*80 pixels, asthe core and supported with high-quality optical lens, ease-of-use operatingsystem. It is precise to measure, clear to view on images, easy to carry withand offers a price you can totally afford. Choosing a UTi100 means asignificant work effectiveness and high temperature measurement accuracy, whichis especially a perfect choice for users who are already used to IRthermometers.

Applicableindustries: electric power, construction, electronics, smelting, energy, railway,automobile, petrochemical

Specifications
Model	UTi100
Sensor Type	Uncooled Focal Plane Arrays
Resolution	100*80 pixels
Field of View /Minimum Focus Distance	12°×9.4°/0.1m
Spatial Resolution(IFOV)	2.2mrad
Image Mode	Infrared
Focus	Manual
Infrared Spectral Bandwidth	8~14um
NETD	≤0.08℃@30℃
Temperature Range	-20℃~300℃
Accuracy	±2°C or ±2% (whichever is greater)
Features
Display Type	2.8"TFT LCD ,Rotatable
Palettes	Iron,Iron-Invert,Rainbow,Feather,Grey,Grey Inverted
Image Adjustment	Auto/Manual
Image Format	*·UIR
Video Output	Support; PAL (50Hz) o r NTSC (60Hz) (With Optional Base)
Measurement Mode	Movable Spot ,Area (MAX,MIN)
Parameters Setting	Emissivity ,Distance ,Temperature ,Relative Humidity
Self Temperature Calibration	Every 60 Seconds
High/Low Temperature Alarm	√
Laser Pointer	√
Image Capture	√
Image Storage	2GB SD Card (Support Up to 16GB)
Temperature Units	℃/℉
Support Languages	English /Simplified Chinese
Restore factory settings	√
Power Mode	Standard /Power Saving
Analyzing Software	Standard Version
Water Proof Rating	IP54
Impact /Vibration	25G/2G
General characteristics
Power	Li-ion 1250mAh
Product Color	Red and Grey
Product Net Weight	500g
Product Size	170mm X 80mm X 160mm
Standard Accessories	Batteries, Power Charger, SD Card (2G),Card Reader ,Camera Cover ,Software CD
Standard Individual Packing	Gift box ,Toolbox,User Manual
Standard Quantity Per Carton	5 PCs
Standard Carton Measurement	545mm × 380mm × 325mm(0.067 CBM Per Standard Carton )
Standard Carton Gross Weight	11.6Kg
Optional Accessories	Multi-purpose Dock, Power Adapter, Video Cable,16G SD card ,Vehicular Power Cord,Lens Hood,38°Wide –angle Lens , 12°,6.4°,3.8°Tele Lens, Tailer-made Temperature Range (600℃,1000℃,1500℃)
