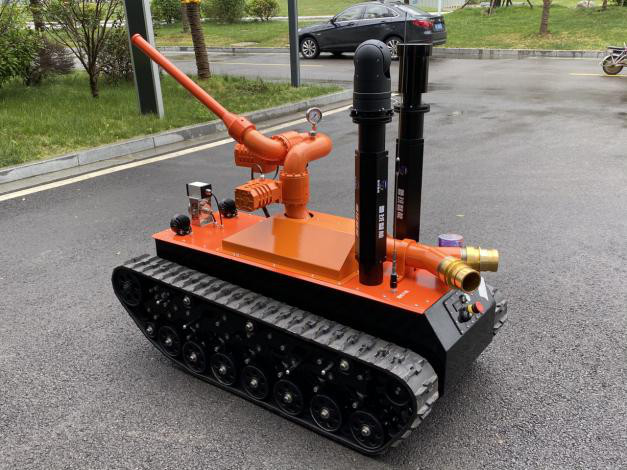

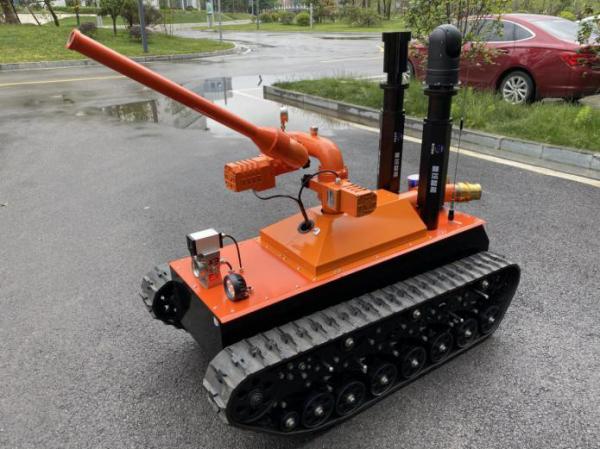

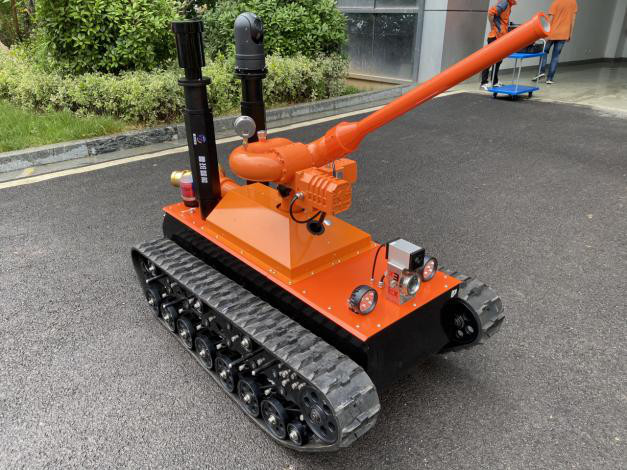

Fire Fighting Equipment Powder material robot
1.Product description
As a kind of special spraying robot, the powder material robot uses lithium battery power supply as power supply, and uses wireless remote control to control the powder material robot remotely. Can be used in a variety of large petrochemical enterprises, tunnels, subways and other increasing, oil gas, gas leakage and explosion, tunnels, subway collapse and other disaster hazards, fire fighting robots play a pivotal role in emergency rescue, mainly to replace firefighters in dangerous fire or smoke fire scene rescue special equipment.
2.Overall performance parameters
2.1 Field of use: Fire fighting, reconnaissance, petrochemical and other flammable and explosive environments
2.2 Traction: N 2840
Walking speed :0~1.2 m/s, Remote control of stepless speed
2.4 Climbing capacity :35°
2.5 Continuous walking time :≥3 h
2.7 Remote control distance :1 km( visual environment, subject to site environment)
2.8 Control mode: wireless remote control
2.9 Protection level: IP 65
Water height :≥400 mm
2.11 Barrier-free capability :230 mm barriers; adaptable to grassland, sand, snow, gravel, beach, etc.
2.12 Straight run bias :<6%
Weight :390 kg ±10 kg( without universal joint, self-shedding)
3.Chassis parameters
Size :1670 mm×940 mm×1350 mm
3.2 Walking mechanism: all terrain high strength track, internal high strength tensile fiber
3.3 Turning radius: in situ rotation
3.4 Power :2000 W*2
3.5 Chassis height :170 mm from ground floor
3.6 Lateral tilt stabilization angle :≥30°
4.Fire extinguishing system parameters
★4.1 Types of extinguishing agents: dry powder, cement powder
4.2 Material: Gun Body - Stainless Steel, Gun Head - Aluminum alloy
4.3 Working pressure: rated working pressure 0.5~1.6(Mpa)
4.4 Interface mode :80 mm card type interface
4.5★ Jet flow :30 kg/s
4.6★ Range :35 m, dry powder
Rotation angle: horizontal-90°~90°, vertical 0°~90°
4.8 Fire Gun Type: Domestic Dry Powder Fire Gun
5.Video System Parameters
5.1 The video system consists of a fixed infrared thermal imaging camera and a cloud head infrared camera.
5.2 Clear collection of field conditions and display on the LCD screen of the operating terminal.
IR thermal imaging camera parameters (optional):
5.3 Resolution :384*288
5.4 Temperature range :-20-550℃
Infrared camera parameters:
5.5 The fuselage camera can provide clear images LUX low illumination, dynamic anti-shake; the camera should have zero illumination
It still works
5.6 Head height :1320 mm±10 mm
5.7 The head rotates 360 degrees horizontally, up and down-20~95 degrees.
6.Multi-gas environmental monitoring (optional)
★ Detection Category:
CO2: VOL 0-5%
CH4: VOL 0-100%
CO: ppm 0-1000
H2S: ppm 0-100
CL2: ppm 0-1000
NH3: ppm 0-100
O2: O2 0-30%
H2: ppm 0-1000
Temperature range: -25°C to 60°C C
Humidity range: 0% RH to 90% RH
7.Remote control terminal configuration parameters
7.1 Dimensions :406*330*174 mm
7.2 Machine weight :8.5 kg
7.3 Display: Not less than 10 inches high brightness LCD screen ,2 channels video signal switch
7.4 Working hours :8 h
7.5 Auxiliary tools: shoulder straps, tripod
