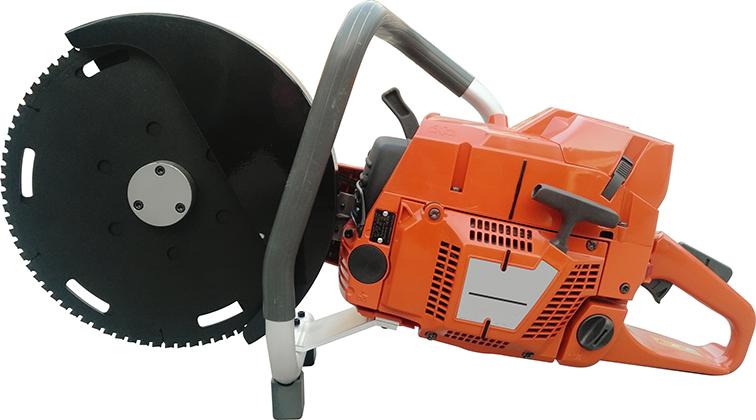

Twin Saw/Dual Saw
Model: PJRS/115-JH
Overview:
This product is a convenient rescue tool to carry, store and use. It can cut steel, copper, aluminum (using lubricating oil), wood, plastic, automobile glass and other materials without replacing the saw blade
Applications:
Emergency rescue, fire rescue, demolition
Characteristic:
The original half-crescent drive is adopted, which is easy to use, large transmission torque and low failure rate. Completely abandon the old screw installation saw blade, eliminate the screw loose, frequent maintenance, low transmission torque, high failure rate. Make your operation more convenient, more reliable, more excellent.
Lightweight saw blade gland ensures high strength while further reducing weight.
Small aluminum alloy shield, higher strength than plastic shield, higher safety factor, lower weight than iron shield.
New belt tensioning device, more convenient operation. Just remove the small cover, loosen the cover nut with a sleeve, and then adjust the tightness of the belt with a 5mm hex wrench, and finally lock the cover nut to complete the belt adjustment.
The brake, a new safety concept, for your operation escort.
In the process of starting, maintenance and emergency, please pull the brake lever forward and hold the brake tightly.
Technical Specification:
| Model | PJRS/115-JH |
| Displacement | 70.7cc |
| Standard Idle | 2600rpm |
| No-load maximum speed | 13500rpm |
| power | 4.1kw |
| Fuel tank capacity | 0.77L |
| Engine Oil Tank Capacity | 0.42L |
| Engine pump oil supply | AUTO |
| Weight(excluding oil and blade) | 12.6kg |
| noise level | 105dB |
| Blade specification | 315mm |
| Cutting depth | 115mm |
Inventory list:
Dual saw*1
Blade with diameter of 315mm 2 pairs (4 pieces)
Proportional bucket of gasoline and engine oil*1
One pair of protective gloves
Toolbox 1
special tools 4 PCS
